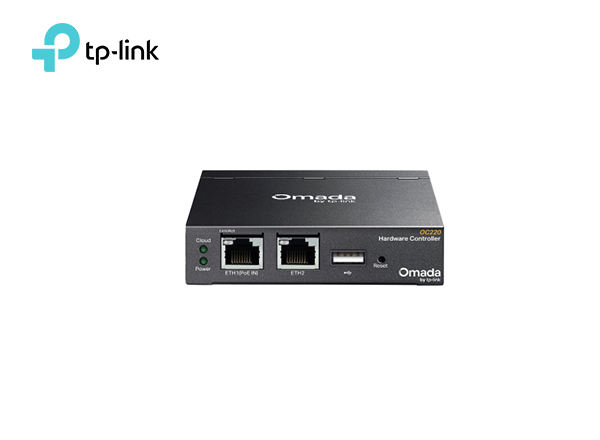

Description Model: OC220 TP-Link Omada Hardware Controller Centralized Management: Supports up to 100 Omada access points, 10 Omada gateways, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs* Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime. On-Premises Management: Locally monitor and manage devices with the ultimate stability and complete privacy. Hardware Design for Businesses: A powerful chipset, durable metal casing, USB 2.0 port for data backup, and two Gigabit Ethernet ports. Flexible Deployment: 802.3af PoE or Micro USB (DC 5V/Minimum 1A) power supply and compact desktop or wall mount installation. Specifications HARDWARE FEATURES Interface • 2× Gigabit Ethernet Port • 1× USB 2.0 Port • 1× Micro USB Port Power Supply • 802.3af PoE • Micro USB（DC 5V/Minimum 1A） Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm) Management Features Omada App Yes Centralized Management • 100 Omada access points • 10 Omada gateways • A maximum of 20 Omada switches* • A maximum of 2 certain DeltaStream GPON OLTs*Note: Please refer to <href=”https: www.omadanetworks.com=”” en=”” business-networking=”” all-omada=”” “=””>www.omadanetworks.com/en/business-networking/all-omada/ to find all the Omada device models supported by OC220 *The number of supported Omada switches decreases by 5 for each DeltaStream GPON OLT added. The DeltaStream GPON OLTs supported by the controller are DS-P7001-04 and DS-P7001-08.</href=”https:> Cloud Access Yes L3 Management Yes Multi-site Management Yes Management Features • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration OTHERS Certification CE, FCC, RoHS Package Content • Omada Hardware Controller OC220 • Quick Installation Guide • RJ45 Ethernet Cable System Requirements Windows 7/8/10/11, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux Environment • Operating Temperature: -5–50 ℃ (23–122 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing Related
