TP-Link EAP650 D30-Outdoor AX3000 Indoor/Outdoor WiFi 6 Access Point | T120

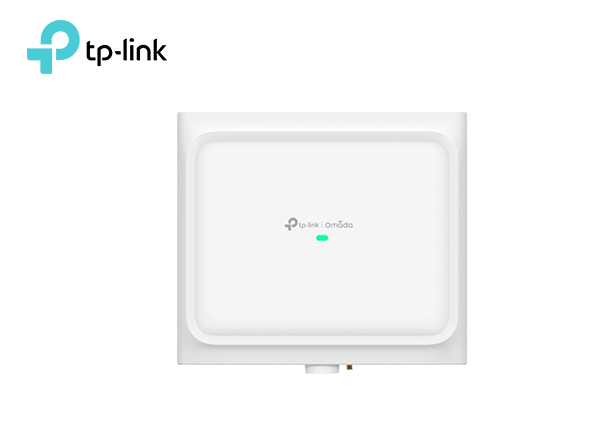

Description Model: EAP650 D30-Outdoor TP-Link​​ AX3000 Indoor/Outdoor WiFi 6 Access Point Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.† Directional Ultra-Range Coverage: Equipped with built-in high-gain directional antennas to deliver precise and extended coverage.* Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to 70°C operating range. 802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners.§ Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology. Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI.§ Specifications HARDWARE FEATURES Interface 1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE) Button Reset Power Supply • 802.3at PoE • 48V Passive PoE Max. Power Consumption • EU: 12.5W (802.3at PoE or Passive PoE) • US: 14.7W (802.3at PoE or Passive PoE) Dimensions ( W x D x H ) 8.2 × 2.3 × 9.1 in (207.5 × 58 × 230 mm) Antenna Built-in Directional Antennas: • 2.4 GHz: 2× 12 dBi • 5 GHz: 2× 15 dBi Beamwidth: 30° Horizontal; 30° Vertical Bluetooth Yes Weatherproof Enclosure IP68 Mounting Wall/Pole/Ceiling Mount WIRELESS FEATURES Concurrent Clients 250 ** Wireless Standards IEEE 802.11 a/b/g/n/ac/ax Frequency 2.4 GHz, 5 GHz Signal Rate 574 Mbps (2.4 GHz) 2402 Mbps (5 GHz)† Wireless Functions • 1024-QAM • DL/UL OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 on each band) • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast • Guest Network • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO • Omada Mesh§ • Seamless Roaming(802.11k/v/r)§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule • Wireless Statistics • Static IP/Dynamic IP Wireless Security • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power • EU: < 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP); • US: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz) Management Features Omada App Yes Restore & Backup Yes NTP Yes Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller Cloud Access Yes. Require the use of an Omada controller. Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1, v2c, v3 System Logging Local/Remote Syslog Yes SSH Yes Web-based Management Yes Multi-site Management Yes Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller OTHERS Certification CE, FCC, RoHS Package Content • Access Point EAP650 D30-Outdoor • Mounting Kits • Installation Guide System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux Environment • Operating Temperature: -30–70 ℃ (-22–158 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing Related
