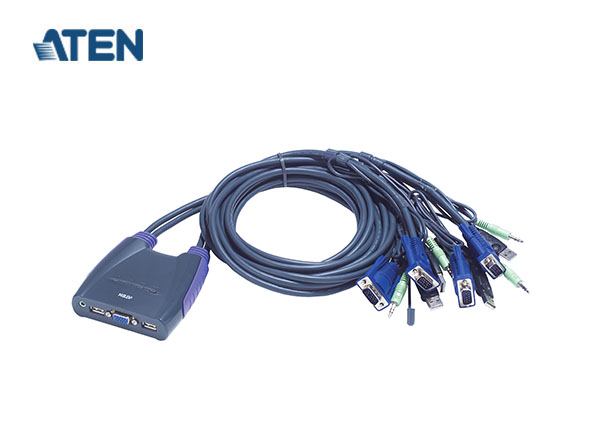

Description Model: CS64US ATEN 4-Port USB VGA/Audio Cable KVM Switch (0.9m, 1.2m) Superior video quality – up to 2048 x 1536 @ 60 Hz ; DDC2B Computer Selection via hotkey Multiplatform support – Windows, Linux, Mac, and Sun Built-in 0.9/1.2 m cables and bus-powered design Overview The CS64US takes a giant step forward from prior cable KVM models, by offering built-in cables, USB peripheral sharing, and a firmware upgrade function that allows you to keep up with latest available versions. Furthermore, the CS64US features enhanced Video DynaSync™ technology, which stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution. The CS64US also offers multiplatform support and computer selection via hotkeys to provide the ultimate in desktop convenience. Features One USB console controls four USB computers Compact design, built-in 0.9/1.2 m cables Hotkey selection for OS and keyboard language Computer Selection via hotkey Multiplatform support – Windows, Linux, Mac, and Sun Video DynaSync ™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports USB mouse port can be used for USB 1.1 hub and USB 1.1 peripheral sharing Supports multifunction and wireless keyboards and mice All-in-one design With speaker support Superior video quality – up to 2048 x 1536 @ 60 Hz ; DDC2B Auto Scan function to monitor computer operation Bus-powered Sun/Mac keyboard support and emulation* Firmware upgradable Specifications Computer Connections 4 Port Selection Hotkey Connectors Console Ports 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) KVM Ports 4 x HDB-15 Male (Blue) 4 x USB Type A Male 4 x 3.5mm Audio Jack Male (Green) LEDs Selected 4 (Green) Cable Length Computer 2 x 0.9 m; 2 x 1.2 m Emulation Keyboard / Mouse USB Video 2048 x 1536; DDC2B Scan Interval 1-99 secs. (default 5 secs.) Power Consumption DC5V:0.9W:8BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. Environmental Operating Temperature 0 – 50°C Storage Temperature -20 – 60°C Humidity 0-80% RH, Non-condensing Physical Properties Housing Plastic Weight 0.58 kg ( 1.28 lb ) Dimensions (L x W x H) 9.41 x 9.72 x 2.60 cm (3.7 x 3.83 x 1.02 in.) Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. Related
