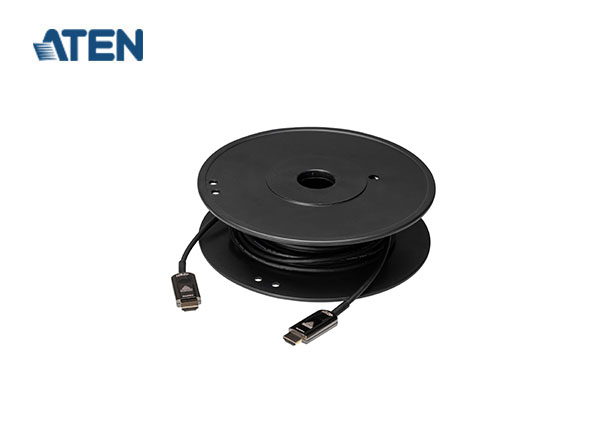

Description ATEN VE781020 20M True 4K HDMI Active Optical Cable (True 4K@20m) Extends True 4K signals up to 20m Reduced EMI and RFI for lower noise interference Gold-plated connectors for reliable transmissions Overview ATEN VE781020 True 4K HDMI Active Optical Cable utilizes AOC technology that enables conversion between input signals and optical signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables come in 20m with full support of True 4K resolutions. It is fully compliant with HDCP 2.2 standards and meets HDMI specifications including 3D, deep color, and data rates up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio, the optical cables guarantee lossless audio signal transmissions. The VE781020 optical cable is an ideal solution for extending the reach of your digital signage in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities. Package Contents 1x VE781020 20M True 4K HDMI Active Optical Cable 1x Installation Notice Features Supports resolution up to True 4K (4096 x 2160 @ 60Hz 4:4:4) HDMI (3D, Deep Color, True 4K , HDR, ARC); HDCP 2.2 compliant Extends True 4K signals up to 20m Reduced EMI and RFI for lower noise interference High data transfer rate of 18 Gbps Supports multi audio channel – Dolby TrueHD and DTS-HD Master Audio Robust cable pulling strength (Max.10 kg) and compression load resistance (Max.50 kg) Plug-and-play Specifications Cable Length 20M / 65.6ft Cable Type Hybrid type with optical fiber (OM3) and copper wire Video Input Interfaces 1 x HDMI 19-pin Type-A Male Video Output Interfaces 1 x HDMI 19-pin Type-A Male Video Max. Data Rate 18 Gbps (6 Gbps per Channel) Max. Pixel Clock 600 MHz (Max.) Max. Resolutions / Distance Up to 4096 x 2160 / 3840 x 2160 @60Hz (4:4:4) / 20M *Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0 *Color Depth: 30 / 36 / 48 bit Compliance HDMI (3D, Deep Color, 4K, HDR, ARC) HDCP 2.2 Communication Signals TMDS / HDCP 2.2 / EDID / CEC Audio Input PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio Output PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio Conductor Construction 7 x Tinned Copper wire strand 4 x OM3 Optical Fiber (50/125um) Notification Bend Radius: 20mm (Min.) Compression Load Resistance: Max. 50kg (500N) Cable Filler: Kevlar Cable Marking: ATEN INTERNATIONAL — HIGH SPEED HDMI HYBRID ACTIVE OPTICAL CABLE 4K@60Hz 18Gbps — PVC CE EU RoHS EC ZONE/DEVICE * NO external power required Certifications Certifications Safety and Emission: CE / FCC / RoHS / REACH / UL VW-1 EMC Class-A / Class-B Power Consumption DC5.0V:0.25W:0.05ABTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. Jacketed Material PVC (85P) Color: Black Environmental Operating Temperature 0°C to 50°C (32℉ to 122℉) Storage Temperature -20°C to 70°C (-4℉ to 158℉) Humidity 0 – 85% RH, Non-Condensing Physical Properties Housing Connector Case: Zinc Alloy Weight 0.65 kg ( 1.43 lb ) Cable Outer Dimension 4.5mm (± 0.2mm) Carton Lot 5 pcs Related
