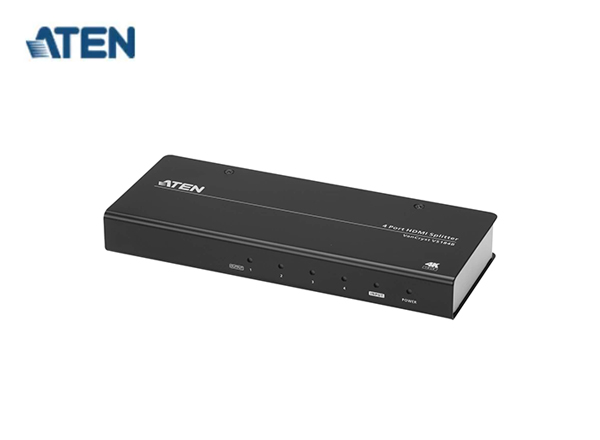

Description Model: VS184B ATEN 4-Port True 4K HDMI Splitter Overview The VS184B True 4K HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMIenabled equipment, such as DVD players, satellite set- top boxes and all HDMI monitors, displays, projectors, or TVs. The VS184B True 4K HDMI Splitter is HDMI 2.0 compliant, 4K at 60Hz (4:4:4), and supports multiple streaming audio, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings. Package Contents 1 x VS184B 4-Port True 4K HDMI Splitter 1 x Power adapter 1 x HDMI cable 1 x User Instructions Features Connects one HDMI source to four HDMI displays at the same time HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible Supports HDR10 Supports max resolutions of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) Long distance transmission- up to 15 m(1920×1200) / 1.8m (True 4K) Max pixel clock rate up to 600 MHz Max data rate up to 18 Gbps (6 Gbps per lane) LED indication of power status and source devices EDID Expert™ – Selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution via EDID DIP Switch, allowing users to effortlessly switch among Port 1, Default, and Auto Plug-and-play – No software installation required Specifications Video Input Interfaces 1 x HDMI Type A Female (Black) Impedance 100 Ω Max. Distance 5m at 4K@60Hz (4:4:4) Video Output Interfaces 4 x HDMI Type A Female (Black) Impedance 100 Ω Max. Distance 5m at 4K@60Hz (4:4:4) Video Max. Data Rate 18Gpbs (6 Gbps Per Lane) Max. Pixel Clock 600 MHz Compliance HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 Compatible Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) Audio Input 1 x HDMI Type A Female (Black) Output 4 x HDMI Type A Female (Black) Connectors Power 1 x DC Jack Power Consumption DC5V:4.84W:23BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. Environmental Operating Temperature 0-40 °C Storage Temperature -20 – 60 °C Humidity 0 – 80% RH, Non-Condensing Physical Properties Housing Metal Weight 0.48 kg ( 1.06 lb ) Dimensions (L x W x H) 20.00 x 8.00 x 2.50 cm (7.87 x 3.15 x 0.98 in.) Carton Lot 20 pcs Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. Related
