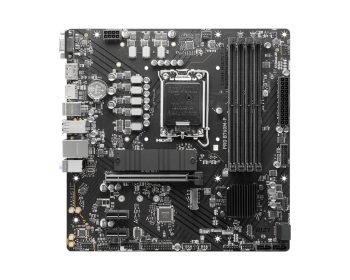

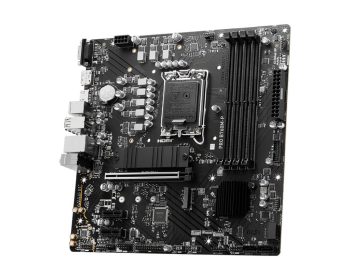

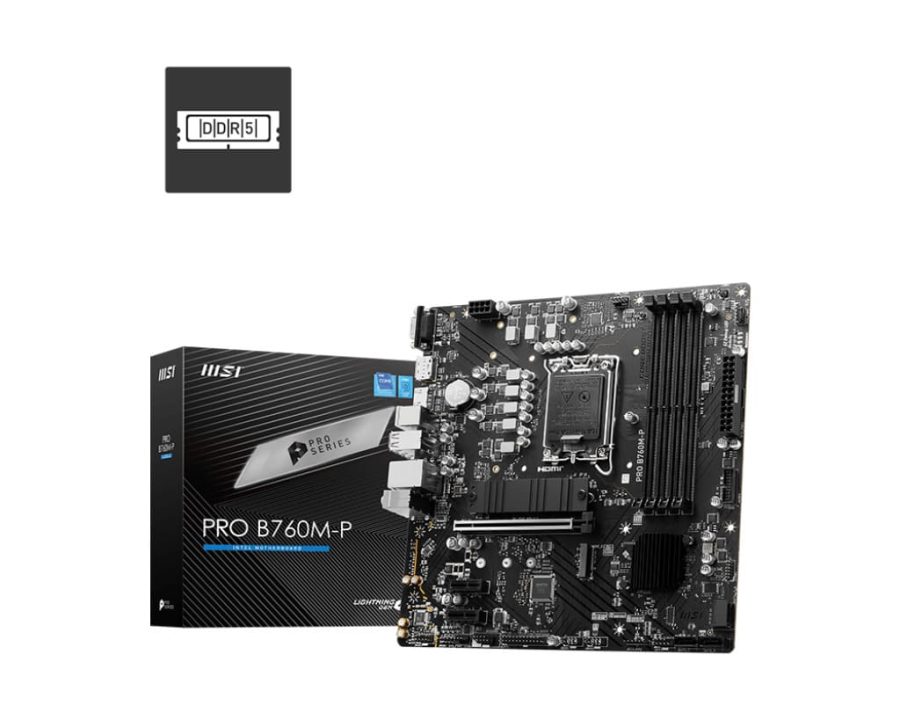

MSI PRO B760M-P DDR5 Motherboard Support Intel® Core™ 14th/ 13th/ 12th Gen Processors LGA 1700

MSI PRO B760M-P DDR5 Motherboard Support Intel® Core™ 14th/ 13th/ 12th Gen Processors LGA 1700 Chipset INTEL B760 CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 Memory 4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 6800 (OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800 MHz • 1DPC 2R Max speed up to 6400 MHz • 2DPC 1R Max speed up to 6000 MHz • 2DPC 2R Max speed up to 5600 MHzSupports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory Onboard Graphics 1x HDMI™ Support HDMI™ 1.4, maximum resolution of 4K 30Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) Audio Realtek® ALC897 Codec 7.1-Channel High Definition Audio Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices USB 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Rear) LAN Realtek® RTL8111H Gigabit LAN Internal IO 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports LED FEATURE 4x EZ Debug LED BACK PANEL PORTS VGA DisplayPort HDMI™ Keyboard / Mouse USB 2.0 LAN port Audio Connectors USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit BOX CONTENT PCB Info mATX 243.84mmx243.84mm
