$41.3
$51.63
Description High quality imaging with 2 MP resolution Efficient H.265 compression technology Clear imaging against strong back light due to DWDR technology Water and dust resistant (IP67) EXIR 2.0: advanced infrared technology with long IR range Specification 1/3″progressivescanCMOS 2560×1440@20fps 2.8mm/4mm/6mmfixedlens H.265 , H.265, H.264 , H.264 Dual stream Digital WDR(Wide Dynamic Range) 3DDNR(Digital Noise Reduction) Upto30mIRrange POE (Power over Ethernet) IP67 Camera Image Sensor 1/3″ progressive scan CMOS Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON) Shutter Speed 1/3 s to 1/100, 000 s Slow Shutter Yes Auto-Iris No Day &Night IR cut filter DNR (Digital Noise Reduction) 3D DNR WDR (Wide Dynamic Range) Digital WDR Angle Adjustment (Bracket) Pan: 0° to 360°, tilt: 0°to 180°, rotation: 0° to 360° Lens Focal length 2.8 mm, 4 mm, 6 mm Aperture F2.0 Focus No FOV 2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88° 6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 58° Lens Mount M12 IR IR Range Up to 30 m Wavelength 850 nm Compression Standard Video Compression Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG H.264 Type Baseline Profile/Main Profile/High Profile H.264 Main stream supports H.265 Type Main Profile H.265 Main stream supports Video Bit Rate 32 Kbps to 8 MBPS Smart Feature-set Region of Interest 1 fixed region for main stream and sub-stream Image Max. Resolution 2560 × 1440 Main Stream 50Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720) Max. Frame Rate 60Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720) Sub-stream 50Hz: 20fps (704 × 576, 352 × 288, 640 × 480, 320 × 240) Max. Frame Rate 60Hz: 20fps (704 × 480, 352 × 240, 640 × 480, 320 × 240) Image Enhancement BLC, 3D DNR Image Setting Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser Day/Night Switch Auto, scheduled Network Network Storage NAS (NFS, SMB/CIFS) Alarm Trigger Motion detection, video tampering alarm, illegal login Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPOE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QOS, IPv6 UDP, Bonjour General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Firmware Version 5.5.2 API ONVIF (PROFILE S, PROFILE G), ISAPI Simultaneous Live View Up to 6 channels User/Host Up to 32 users 3 levels: Administrator, Operator, and User Client iVMS-4200, HIk-Connect, iVMS-5200 Web Browser IIE7 , Chrome18-42, Firefox5.0 , Safari5.02 Interface Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port General Operating Conditions -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing) Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug POE (802.3af, class 3) Power Consumption and Current 12 VDC, 0.4 A, Max: 5 W POE: (802.3af, 37 V to 57 V), 0.2 A to 0.13 A, Max: 7 W Protection Level IP67 TVS 2000V lightning protection, surge protection and voltage transient protection Material Metal & Plastic Dimensions Camera: Ø 70 mm × 172.7mm ( 2.7″ × 6.8″) With package: 216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″) Weight Camera: Approx. 280 g (0.62 lb.) With package: 530 g (1.17 lb.)

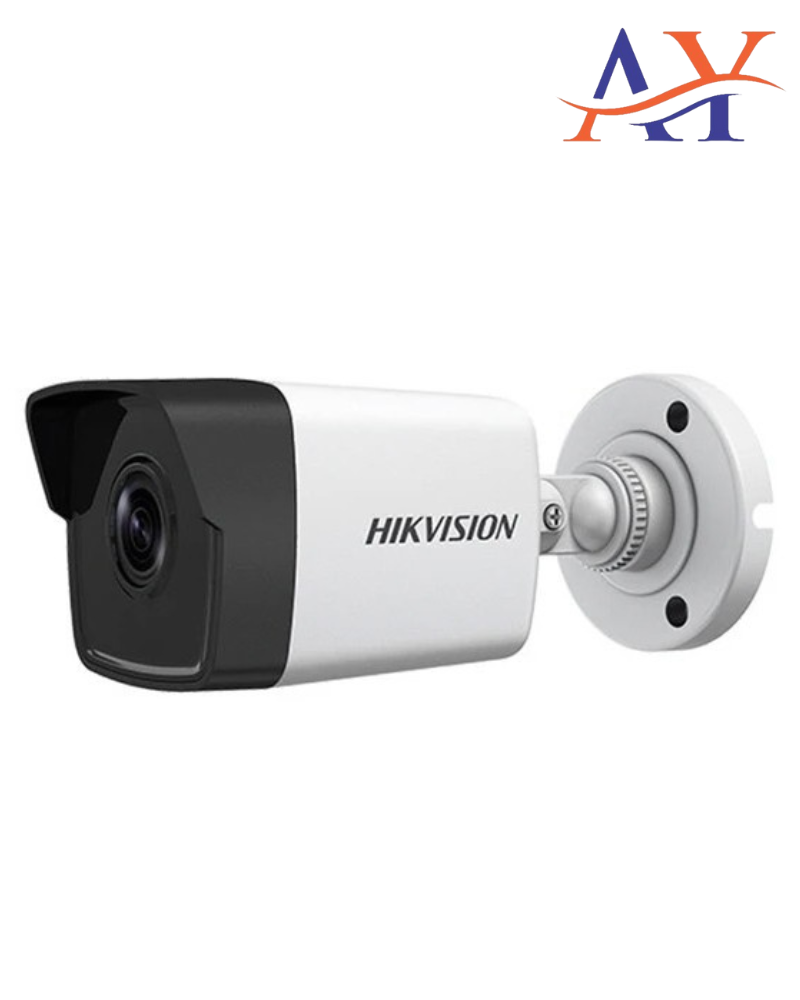

Hikvision Ip Cameras
