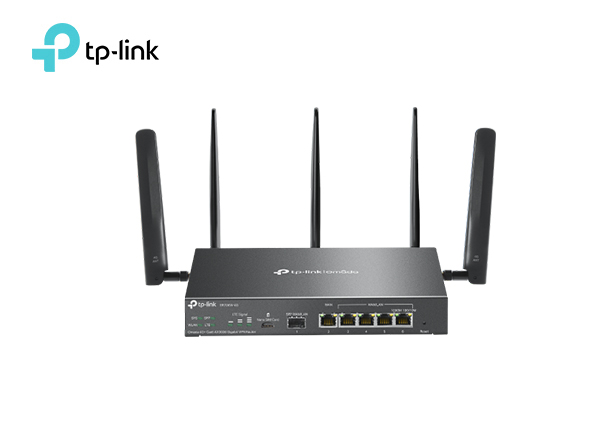

TP-Link ER706W-4G Omada 4G Cat6 AX3000 Gigabit VPN Gateway | T200

Description Model: ER706W-4G TP-Link Omada 4G Cat6 AX3000 Gigabit VPN Gateway Support 4G Cat6*: Insert a Nano SIM card to enjoy up to 300 Mbps (Not compatible with AT&T’s Text & Data plans** in the US). AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*** 6 Gigabit Ethernet Ports: Provide high-speed wired connectivity. 5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals. Centralized Management: Cloud access and the Omada app for easy management. Omada Mesh: Seamlessly connects to EAPs that support mesh technology.*△ High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN.△ Specifications 4G Network Type LTE Band of EU: • 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz) • 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) • 3G DC-HSDPA/HSPA /HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz)Carrier Aggregation of EU: B1 B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 B3 B3/B5/B7/B8/B20/B28/B38/B40/B41 B5 B5/B7/B38/B40/B41 B7 B7/B8/B20/B28/B32 B8 B32/B38/B40/B41 B20 B32/B38/B40 B28 B32/B38/B40/B41 B38 B38 B40 B40 B41 B41LTE Band of US: • 4G LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71 (1950/2100/850/2600/750/750/750/1950/850/700/2350/2150/650 MHz) • 4G LTE-TDD: B41/B48 (2500/3600 MHz)Carrier Aggregation of US: B2 B2/B4/B5/B7/B12/B13/B14/B29/B30/B48/B66/B71 B4 B4/B5/B7/B12/B13/B29/B30/B71 B5 B5/B7/B25/B30/B41/B66 B7 B7/B12/B66 B12 B12/B25/B30/B66 B13 B66 B14 B30/B66 B25 B25/B26/B41 B26 B41 B29 B30/B66 B30 B66 B41 B41 B48 B48 B66 B66/B71 SIM Type 1× Nano SIM Card Frequency • Downlink: 300 Mbps; • Uplink: 50 Mbps SECURITY DPI Application control via DPI / Updated app library IDS/IPS Signature-based IPS/IDS threat detection Access Control Source/Destination IP Based Access Control Filtering • Web Group Filtering† • URL Filtering • Web Security† ARP Inspection • Sending GARP Packets • ARP Scanning† • IP-MAC Binding Attack Defense • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN HARDWARE FEATURES Interface • 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port • 4 Gigabit LAN/WAN Ports Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) Button Reset Button Power Supply 12VDC / 2A Power Adapter Wi-Fi Frequency & Signal Rate • 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160) Flash 128 MB NAND DRAM 512 MB DDR4 LED SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included) Antenna • Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas • LTE: Two 4.0dBi omnidirectional detachable antennas Mounting Desktop/Wall-Mounting Max. Power Consumption EU: 15.4W US: 17.3W PERFORMANCE IPS Throughput • TCP: 229 Mbps • UDP: 188 Mbps DPI Throughput • TCP: 933 Mbps • UDP: 927 Mbps GRE • Unencrypted: 545.3Mbps • Encrypted: 282.6Mbps WireGuard VPN 387.7Mbps Concurrent Session 150,000 New Sessions /Second 5,100 NAT (Static IP) 947.1Mbps / 940.1Mbps NAT(DHCP) 949.2Mbps / 941.1Mbps NAT(PPPoE) 942.6Mbps / 941.1Mbps NAT (L2TP) 875.4Mbps / 892.0Mbps NAT (PPTP) 881.2Mbps / 895.8Mbps IPsec VPN Throughput • ESP-SHA1-AES256: 652.2Mbps • ESP-SHA256-AES256: 654.4Mbps • ESP-SHA384-AES256: 646.5Mbps • ESP-SHA512-AES256: 670.5 Mbps OpenVPN 115.5Mbps L2TP VPN Throughput • Unencrypted: 990.0Mbps • Encrypted: 475.0Mbps PPTP VPN Throughput • Unencrypted: 1177.9Mbps • Encrypted: 177.4Mbps SSL VPN Throughput 122.5Mbps 66 Byte Packet Forwarding Rate 1,453,489 pps / 1,453,488 pps 1,518 Byte Packet forwarding rate 81274 pps / 91275 pps WIRELESS FEATURES Advanced Features • Seamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • MU-MIMO • Rate Limit: Based on SSID/Client • Airtime Fairness • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise • Multiple SSIDs: 16 in total (8 per radio) Guest Network Support BASIC FUNCTIONS WAN Connection Type • Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP MAC Clone Modify WAN Address DHCP • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP SMS Receive / Send SMS IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode VLAN 802.1Q VLAN IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode Advanced Features Access Control IP/Port/Protocol/Domain Name Filtering Advanced Routing • Static Routing • Policy Routing • RIP† • OSPF† Bandwidth Control IP-Based Bandwidth Control Load Balance • Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection NAT • One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering† • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP Session Limit IP-Based Session Limit VPN GRE Only in Standalone Mode SD-WAN √ (Only in Controller Mode) SSL VPN 50 Tunnels IPsec VPN • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) PPTP VPN • PPTP VPN Server • PPTP VPN Client (10)△ • 50 Tunnels • PPTP with MPPE Encryption L2TP VPN • L2TP VPN Server • L2TP VPN Client (10)△ • 50 Tunnels • L2TP over IPSec OpenVPN • OpenVPN Server • OpenVPN Client (5)△ • 55 OpenVPN Tunnels • “Certificate Account” Mode • Full Mode WireGuard VPN • 20 Tunnels AUTHENTICATION Web Authentication • No Authentication • Simple Password§ • Hotspot (Local User / Voucher§ / SMS§ / Radius§) • External Radius Sever • External Portal Sever§ • LDAP Management Features Omada App Yes. Centralized Management • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller Cloud Access Yes. Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) Maintenance • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)† • NTP Synchronize† • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller. Management Features • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration OTHER Network Services Enabled by Default Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP _____________________________________________________ TDP Server Device discovery • Port: 20003 Protocol: UDP _____________________________________________________ DHCP Server Handle DHCP packets • Port: 67 Protocol: UDP _____________________________________________________ DNS Handle DNS packets • Port: 53 Protocol: TCP/UDP OTHERS Certification CE, FCC, RoHS Package Content • ER706W-4G • Power Adapter • Quick Installation Guide System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux Environment • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing Related
