TP-Link EAP680 AX6000 Ceiling Mount Wi-Fi 6 Access Point | T130

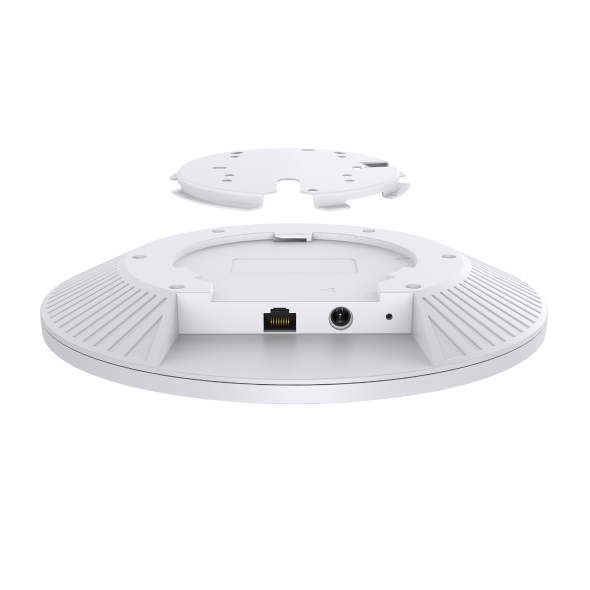

Description Model: EAP680 TP-Link​​ AX6000 Ceiling Mount Wi-Fi 6 Access Point Blazing-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5952 Mbps Wi-Fi speeds.† High-Efficiency Wi-Fi 6: More connected devices can enjoy faster speeds. Centralised Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app. 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡ Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§ Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§ PoE Powered: Supports both 802.3at PoE and DC (adapter included) power supply for flexible installations. Specifications HARDWARE FEATURES Interface 1× 2.5 Gigabit PoE Port Button Reset Power Supply • 802.3at PoE • 12 V / 2 A DC (Power Adapter included) Max. Power Consumption 20.43 W Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) Antenna Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5 dBi Mounting Ceiling /Wall Mounting (Kits included) WIRELESS FEATURES Concurrent Clients 512** Wireless Standards IEEE 802.11ax/ac/n/g/b/a Frequency 2.4 GHz and 5 GHz Signal Rate • 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 1148 Mbps Wireless Functions • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming § • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client Wireless Security • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <28 dBm(5 GHz, band3, EIRP) Management Features Omada App Yes Centralized Management • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1, v2c, v3 System Logging Local/Remote Syslog Local/Remote Syslog SSH Yes Web-based Management HTTP/HTTPS L3 Management Yes Multi-site Management Yes Management VLAN Yes Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller. OTHERS Certification CE, RoHS Package Content • EAP680 • Power Adapter • Ceiling/Wall Mounting Kits • Installation Guide System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing Related
