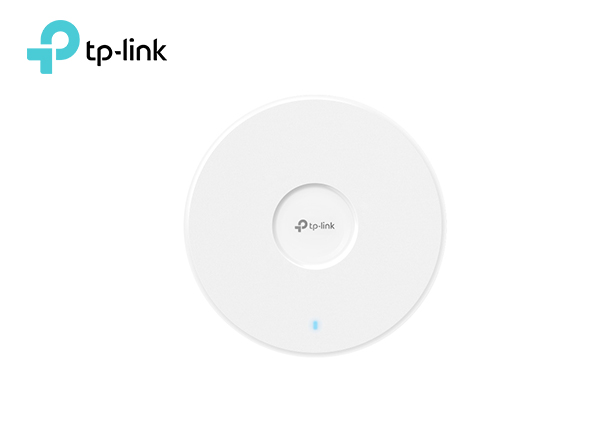

TP-Link EAP673 AX5400 Ceiling Mount WiFi 6 Access Point | T90

Description Model: EAP673 TP-Link​​ AX5400 Ceiling Mount WiFi 6 Access Point Blazing-Fast WiFi 6 Speeds (574 Mbps on 2.4 GHz 4804 Mbps on 5 GHz).† Integrated into Omada SDN, supporting centralized cloud Management, ZTP*, and more. 160 MHz Channel double the data at peak transmission times on a single stream.‡ Advanced features: Supports seamless roaming§,Omada Mesh§, and more. Supports both 802.3at PoE and DC (adapter not included) power supply for flexible installations. Specifications MATERIAL CHARACTERISTICS Interface 1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) Button Reset Food • 802.3at PoE • 12 V / 2 A DC (Power adapter not included) Consumption • EU: 20.8 W • US: 22.3 W Dimensions (LxPxH) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) Antennas Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 4× 5 dBi Bluetooth Yes Montage Ceiling /Wall Mounting (Kits included) WiFi Features Coverage 140㎡(1500 ft²)*** Concurrent Clients 250 ** Standards WiFi IEEE 802.11ax/ac/n/g/b/a WiFi frequency 2.4 GHz and 5 GHz Maximum Flow Rates • 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 574 Mbps WiFi functions • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming § • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client WiFi Security • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission power • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, , band1 & band2, EIRP) <30 dBm(5 GHz, , band3, EIRP)• FCC: <25 dBm (2.4 GHz) <28 dBm (5 GHz) Administration Own the App Yes Centralized Administration • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller Cloud Access Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. Email Alerts Yes DEL ON/OFF Yes MAC Address Access Control Administration Yes SNMP v1, v2c, v3 Local/Remote System Log Local/Remote Syslog SSH Yes Administration par interface WEB HTTP/HTTPS Administration Level 3 Yes Administration Multi-sites Yes Administration VLAN Yes Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller. Others Certification CE, FCC, RoHS Package Contents • EAP673 • Ceiling/Wall Mounting Kits • Installation Guide System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing Related
