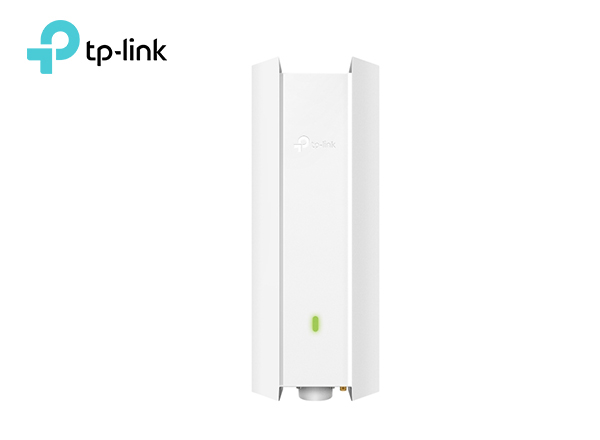

TP-Link EAP623-Outdoor HD AX1800 Indoor/Outdoor Wi-Fi 6 Access Point | T110

Description Model: EAP623-Outdoor HD TP-Link​​ AX1800 Indoor/Outdoor Wi-Fi 6 Access Point Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz 1201 Mbps on 5 GHz.* Supports WiFi 6 technologies, such as 1024-QAM and OFDMA, etc.† High-density connectivity up to 1,000  clients.** Long-range coverage with the high-power amplifier and smart antennas. IP67 weatherproof enclosure for various outdoor environments. Advanced Functions: Centralized management, Omada mesh, and seamless roaming.△ PoE Powered: Supports 802.3at PoE (adapter not included). Specifications HARDWARE FEATURES Interface 1x Gigabit Ethernet Port Button Reset Power Supply • 802.3at PoE • 48V Passive PoENote: PoE adapter is not included. Dimensions ( W x D x H ) 4.2 × 2.2 × 11.1 in (106.5 × 57 × 281 mm) Antenna 2× Internal Dual-Band Omni Antennas • 2.4 GHz: 4.0 dBi; • 5 GHz: 5.0 dBi Weatherproof Enclosure IP67 Mounting Pole/Wall Mounting (Kits included) WIRELESS FEATURES Concurrent Clients 1,020 ** Wireless Standards IEEE 802.11 a/b/g/n/ac/ax Frequency 5 GHz, and 2.4 GHz Signal Rate • 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps Wireless Functions • Mesh△ • Seamless Roaming(802.11k/v/r)△ • Automatic Channel Assignment • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDs:16 (8 for each band) • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP Wireless Security • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication△ • Maximum number of MAC Filter: 4,000 • Wireless Isolation between Clients • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise • 802.1X Support Transmission Power • CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP); • FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz) Management Features Omada App Yes Restore & Backup Yes Firmware update via Web Yes NTP Yes Centralized Management • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller Cloud Access Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. Email Alerts Yes LED ON/OFF Control Yes Management MAC Access Control Yes SNMP v1, v2c, v3 SSH Yes Web-based Management Yes OTHERS Certification CE, FCC, RoHS Package Content • EAP623-Outdoor HD • Installation Guide • Mounting Kit • Waterproof Kit Environment • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing Related
