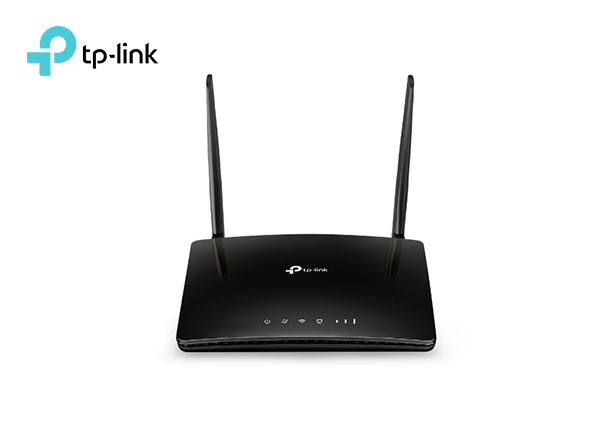

TP-Link Archer MR402 AC1200 Wireless Dual Band 4G LTE Router | T42

Description Model: Archer MR402 TP-Link AC1200 Wireless Dual Band 4G LTE Router Overview Cutting-edge 4G network – share internet access with up to 64 Wi-Fi devices and enjoy download speeds of up to 150 Mbps AC1200 Wi-Fi – creates simultaneous dual band Wi-Fi networks, with maximum speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band Plug a SIM card and play – no configurations needed, compatibility for SIM cards in 100 countries are assured by years of field tests Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access if you can’t get a 4G connection Specifications HARDWARE FEATURES Interface 3× 10/100Mbps LAN Ports 1× 10/100Mbps LAN/WAN Port 1× Nano SIM Card Slot 2× External SMA-F Antenna Interface Button WPS/Wi-Fi Button，Reset Button External Power Supply 12V/1A Dimensions ( W x D x H ) 6.85 × 4.9 × 1.32 in (174 × 124.5 × 33.5 mm) Antenna 2× Detachable External 4G LTE Antennas WIRELESS FEATURES Wireless Standards IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz Frequency 2.4 GHz and 5 GHz Signal Rate 300Mbps at 2.4GHz, 867Mbps at 5GHz Reception Sensitivity 5 GHz: 11a 54M: -77 dBm 11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm 11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm 11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm 2.4 GHz: 11g 54M: -74.5 dBm 11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm 11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm Wireless Functions Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics WAN Failover Yes Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions Transmission Power < 20 dBm (2.4 GHz), < 23 dBm (5 GHz) Network Type 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) SOFTWARE FEATURES Quality of Service Prioritizes network traffic by device or application Operating Modes 3G/4G Router, Wireless Router WAN Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) Management Features Access Control, Local Management, Remote Management reboot schedule DHCP Server, Client, DHCP Client List, Address Reservation Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ Dynamic DNS DynDns, NO-IP VPN PPTP VPN, OpenVPN Access Control Parental Control, Local Management Control Firewall Security DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding Protocols Supports IPv4 and IPv6 Guest Network 2.4GHz guest network x 1, 5GHz guest network x 1 OTHERS Certification CE, RoHS Package Content AC1200 Wireless Dual Band 4G LTE Router, Archer MR402 RJ45 Ethernet Cable 1.5m Power Adapter Quick Installation Guide System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10 MAC OS, NetWare, UNIX or LinuxInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers Nano SIM Card Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Related
