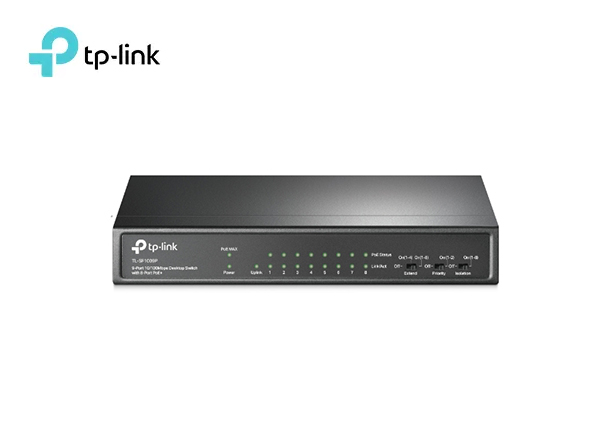

Description Model: TL-SF1009P TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE Overview 9× 10/100 Mbps RJ45 ports 8× PoE ports transfer data and power on individual cables Works with IEEE 802.3af/at compliant PDs Supports PoE Power up to 30 W for each PoE port Supports PoE Power up to 65 W for 8 PoE ports* Up to 250 m data and power transmitting range under Extend Mode** Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application Isolation Mode allows one-click client traffic separation for higher security and performance Plug and play with no configuration required Specifications HARDWARE FEATURES Interface • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE ports) • AUTO Negotiation • AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Physical Security Lock Yes External Power Supply External Power Adapter (Output: 53.5VDC / 1.31A) Packet Forwarding Rate 1.3392 Mpps PoE Ports (RJ45) • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 65 W Mac Address Table 2K Jumbo Frame 2 KB Switching Capacity 1.8 Gbps Dimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) Max. Power Consumption • 3.6 (220/50 Hz. no PD connected) • 77.08 (220/50 Hz. with 65 W PD connected) Max. Heat Dissipation • 12.28 BTU/h (no PD connected) • 262.84 BTU/h (with 65 W PD connected) SOFTWARE FEATURES Advanced Features • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1–2) • Isolation Mode Button (Ports 1–8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode Transmission Method Store-And-Forward OTHERS Certification FCC, CE, RoHS Package Content • TL-SF1009P • Power Adapter • Installation Guide Environment • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing Related
