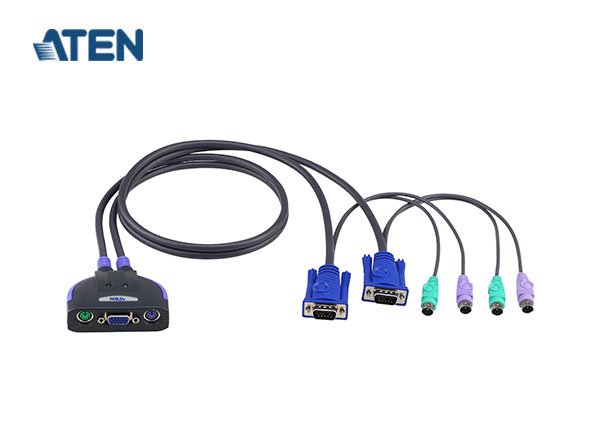

Description Model: CS62S ATEN 2-Port PS/2 VGA Cable KVM Switch (0.9m) Superior video quality up to 2048 x 1536; DDC2B PC selection via hotkeys OS Compatibility includes Windows 2000/XP/Vista, LINUX and FreeBSD Built-in 0.9 m cables and bus-powered design Overview CS62S 2-port KVM Switch has a handy design integrating with 0.9m of cable. It can control 2 servers via a single console. Features One PS/2 console controls 2 PS/2 computers Compact design, built-in 0.9m cables All-in-one design Superior video quality up to 2048 x 1536; DDC2B Auto Scan function to monitor computer operation Bus-Powered OS Compatibility includes Windows 2000/XP/Vista, LINUX and FreeBSD Specifications Computer Connections 2 Port Selection Hotkey Connectors Console Ports 1 x HDB-15 Female (Blue) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) KVM Ports 2 x HDB-15 Male (Blue) 2 x 6-pin Mini-DIN Male (Purple) 2 x 6-pin Mini-DIN Male (Green) LEDs Selected 2 (Green) Cable Length Computer 2 x 0.9 m Emulation Keyboard / Mouse PS/2 Video 2048 x 1536; DDC2B Scan Interval 3, 5, 10, 20 seconds (default: 5 secs.) Power Consumption DC5V:0.17W:5BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. Environmental Operating Temperature 0-50°C Storage Temperature -20-60°C Humidity 0-80% RH, Non-condensing Physical Properties Housing Plastic Weight 0.25 kg ( 0.55 lb ) Dimensions (L x W x H) 7.30 x 6.24 x 2.25 cm (2.87 x 2.46 x 0.89 in.) Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. Related
