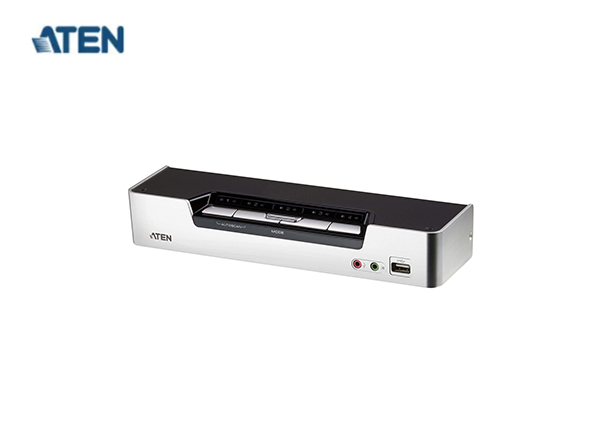

ATEN CS1794 4-Port USB HDMI/Audio KVMP™ Switch | A350

Description Model: CS1794 ATEN 4-Port USB HDMI/Audio KVMP™ Switch Features With the unique design and innovative features, the CS1794 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today’s multimedia SOHO environment. Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console. The CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio. Ideal for multimedia applications in the office, the CS1794 offers the ultimate in space-saving, streamlined KVM technology for the desktop. 4-port HDMI USB 2.0 KVMP™ Switch One USB console controls four HDMI-interface computers and two additional USB devices 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys HDMI digital monitor support – fully compliant with HDMI; also HDCP compliant Dolby True HD and DTS HD Master Audio support Superior video quality – supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI) Power on detection – If one of the computers is powered off, the CS1794 will automatically switch to the next powered-on computer Supports widescreen resolutions Multiplatform support – Windows, Linux,and Mac Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice Video DynaSync™ – stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution Complete keyboard emulation for error-free booting Mac keyboard support and emulation* Auto Scan Mode for monitoring all computers and HDMI devices Firmware Upgradable * 1. PC keyboard combinations emulate Mac Keyboards 2. Mac keyboards only work with their own computers Specifications Computer Connections 4 Port Selection Hotkey, Pushbutton Connectors Console Ports 2 x USB Type A Female (rear panel) 1 x HDMI Female (Black) 2 x 3.5 mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5 mm Audio Jack Female (Pink; 1 x front, 1 x rear) KVM Ports 4 x USB Type B Female 4 x HDMI Female (Black) 4 x 3.5 mm Audio Jack Female (Green) 4 x 3.5 mm Audio Jack Female (Pink) Firmware Upgrade 1 x 3.5 mm Audio Jack Female (Black) Power 1 x DC Jack USB Hub 2 x USB Type A Female (1 x front panel; 1 x rear panel) Switches Selected 5 x Pushbutton LEDs Audio 5 (Green) KVM 5 (Orange) USB 5 (Green) Emulation Keyboard / Mouse USB Video 1920 x 1080 @ 60Hz / 1920 x 1200 @ 60Hz Scan Interval 1-99 seconds (default: 5 sec.) Power Consumption DC5.3V:4.88W:38BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. Environmental Operating Temperature 0-50°C Storage Temperature -20-60°C Humidity 0-80% RH, Non-condensing Physical Properties Housing Metal, Plastic Weight 0.53 kg ( 1.17 lb ) Dimensions (L x W x H) 26.23 x 7.24 x 4.40 cm (10.33 x 2.85 x 1.73 in.) Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. Related
