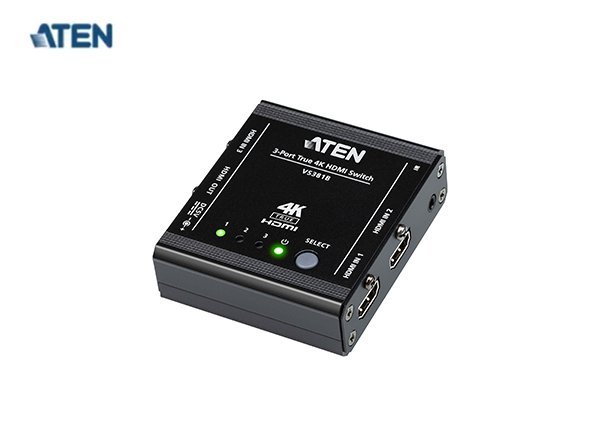

Description Model: VS381B ATEN 3-Port True 4K HDMI Switch Features The VS381B 3-Port True 4K HDMI Switch with Auto Switching provides users to switch 3 HDMI input sources to an HDMI display. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, HDR, 3D, Deep Color, and HD lossless audio formats. Furthermore, the VS381B offers switching methods between HDMI sources by front panel pushbuttons and IR remote control, enabling users to effortlessly select desired input. VS381B is a practical solution for auditorium, home theater, meeting rooms, trade shows, shopping centers, and more. Allows up to 3 HDMI input sources to be transmitted to 1 HDMI output display Superior video quality – True 4K resolution of 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) up to 5m; HDR supported HDMI (3D, Deep Color, 4K, HDR10 , Dolby Vision, HLG) HDCP 2.2 compliant Auto switching mode for auto port selection Switching between HDMI input sources via front panel pushbuttons and IR remote control Supports IR extension Supports 7.1 channel audio output Clear LED indication of device status Plug-and-play – no software installation required Specifications LEDs Input 3 x HDMI-In (Green) Power 1 x Power LED (Green) Pushbuttons Select 1 x push button (input selection) Audio Input 3 x HDMI Type A Female (Black) Output 1 x HDMI Type A Female (Black) Video Input Interfaces 3 x HDMI Type A Female (Black) Impedance 100 Ω Max. Distance Max 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) Video Output Interfaces 1 x HDMI Type A Female (Black) Impedance 100 Ω Max. Distance Max 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) Video Max. Data Rate 18 Gbps (6 Gbps Per Lane) Max. Pixel Clock 600 MHz Compliance HDMI 2.0 (3D, Deep Color, 4K, HDR10, Dolby Vision) HDCP 2.2 Max. Resolution 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) Control IR 1 x Mini Stereo Jack Female (Black) / Max distance@ 5m Connectors Power 1 x DC Jack Note: ATEN strongly recommend to use the USB via USB to DC cable (supplied) and a 5V/0.5A power adapter (self-supplied) as the main power source for the unit. The power supply from the HDMI connection may be insufficient for the unit to operate fully. Power Consumption DC5V:1.46W:6BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. Environmental Operating Temperature 0-40 °C Storage Temperature -20 – 60 °C Humidity 0 – 80% RH, Non-Condensing Physical Properties Housing Metal Weight 0.15 kg ( 0.33 lb ) Dimensions (L x W x H) 7.16 x 7.90 x 2.55 cm (2.82 x 3.11 x 1 in.) Carton Lot 20 pcs Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. Related
