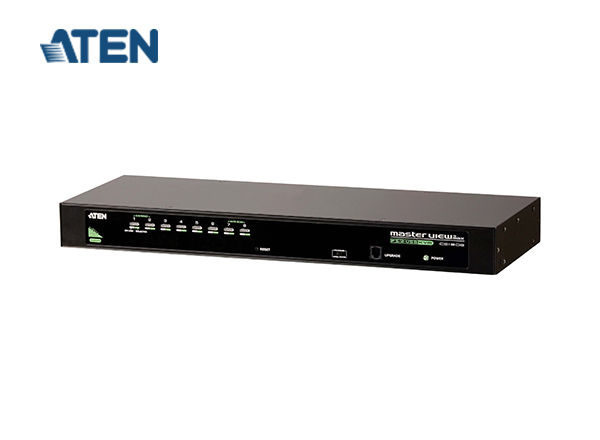

Description Model: CS1308 ATEN 8-Port PS/2-USB VGA KVM Switch Features The CS1308 expedites access to up to 8 PCs via one set of keyboard, mouse and monitor, allowing IT staff to productively manage multiple computers all at once via easy switching. The CS1308 is also expandable and allows 8 more switches to be cascaded to enable centralized management of up to 64 PCs via one KVM console. One USB-PS/2 console controls 8 computers; Cascade up to 2 levels – control up to 64 computers Broadcast mode – operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc. Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports Specifications Computer Connections Direct 8 Maximum 64 (via Cascade) Port Selection OSD, Hotkey, Pushbutton Connectors Console Ports 1 x SPHD-18 Male (Yellow) KVM Ports 8 x SPHD-18 Female (Yellow) Firmware Upgrade 1 x RJ-11 Female (Black) Power 1 x DC Jack Switches Ports 8 x Pushbutton Firmware Upgrade 1 x Slide LEDs Online 8 (Orange) Selected 8 (Green) Power 1 (Dark Green) Emulation Keyboard / Mouse PS/2, USB Video 2048 x 1536; DDC2B Scan Interval 1 – 255 Seconds (Default: 5 secs) Power Consumption DC5.3V:2.34W:19BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. Environmental Operating Temperature 0-50˚C Storage Temperature -20-60˚C Humidity 0-80% RH, Non-condensing Physical Properties Housing Metal Weight 1.89 kg ( 4.16 lb ) Dimensions (L x W x H) 43.72 x 16.13 x 4.40 cm (17.21 x 6.35 x 1.73 in.) Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. Related
