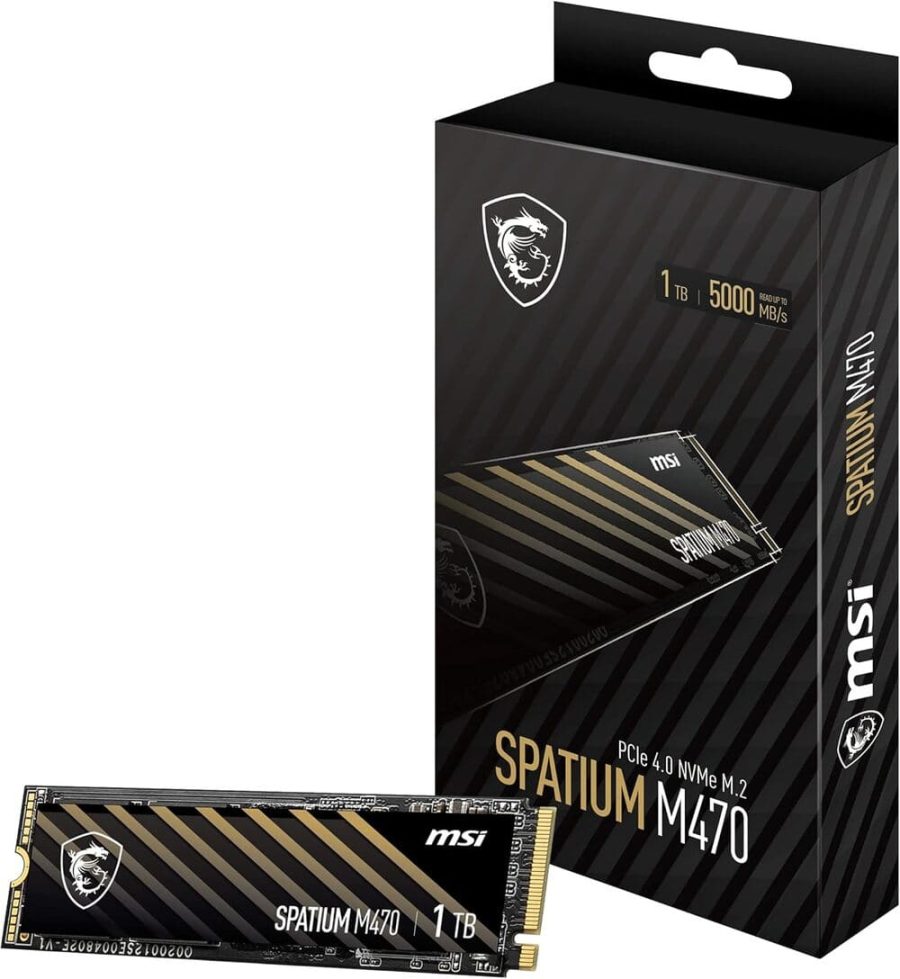

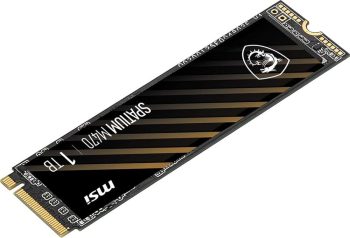

MSI Spatium M470 1TB PCIe 4.0 NVMe M.2 SSD Model Name SPATIUM M470 PCIe 4.0 NVMe M.2 Capacity 1TB 2TB Controller PHISON E16 Flash Memory 3D NAND DRAM Cache 1GB DDR4 2GB DDR4 Form Factor M.2 2280 Interface PCIe Gen4x4, NVMe 1.3 Compatibility PCIe Gen4 / Gen3 / Gen2 / Gen1 Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H) Sequential Read up to (MB/s) 5000 Sequential Write up to (MB/s) 4400 Random Read 4KB up to (IOPS) 600,000 Random Write 4KB up to (IOPS) 600,000 Maximum Operating Power (W) 6.3 7.0 Idle Power PS3 (mW) 20 25 Low Power L1.2 (mW) 2 Operating Temperatures 0°C – 70°C Storage Temperatures -40°C – 85°C Terabytes Written (TBW) 1600 3300 Mean Time Between Failure (MTBF) Up to 1,700,000 Hours Limited Warranty 5 Years, or the coverage for the maximum TBW as stated, whichever comes first. Advanced Features TRIM (Performance Optimization, OS support required) SMART (Self-Monitoring, Analysis and Reporting Technology) LDPC (Low Density Parity Check) ECC Algorithm End to End Data Path Protection APST (Autonomous Power State Transition) Pyrite (Encryption, Data Security)
