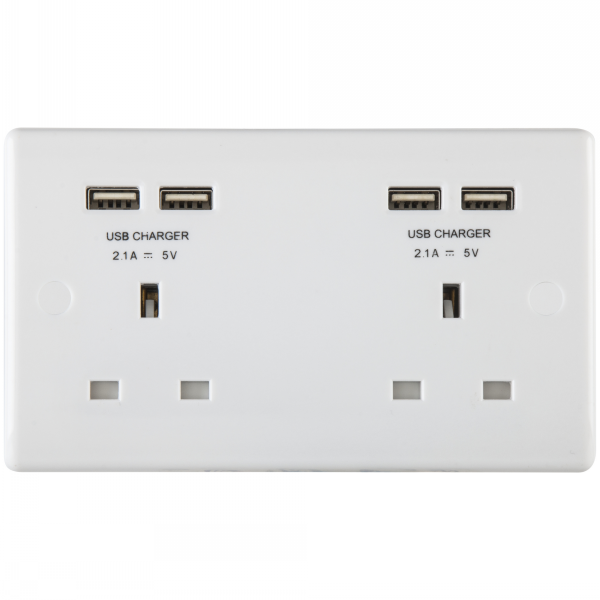

Description BG Rounded Edge Socket 2 Gang With 4 x USB 13A • The subtle design will blend with any décor – suitable for domestic or commercial installations. • White moulded round edge, sleek and slim with softly rounded edges. • Smart USB – Standby mode when device is fully charged. • AutoDetect’s the USB device and adjusts charging pattern to suit; protective overload function. • USB charger standby mode when not in use. • Angled colour coded terminals with captive screws. Technical Specifications: • Standard: BS1363-2:2016 • Rating: 13 Amp 240V~ • Contact Gap: 3.0mm minimum • Switch type: Unswitched • Terminal Capacity L & N: 3 x 2.5mm², 3 x 4.0mm² & 2 x 6.0mm² • Mounting Box Depth (Min): 25mm • Fixing Centres: 120.6mm • USB Output: 5V, 4.2A, shared across 4 USB ports • Output Tolerance: <5% • Standby Power: <75mW • USB Overcurrent Protection: 4.85A
