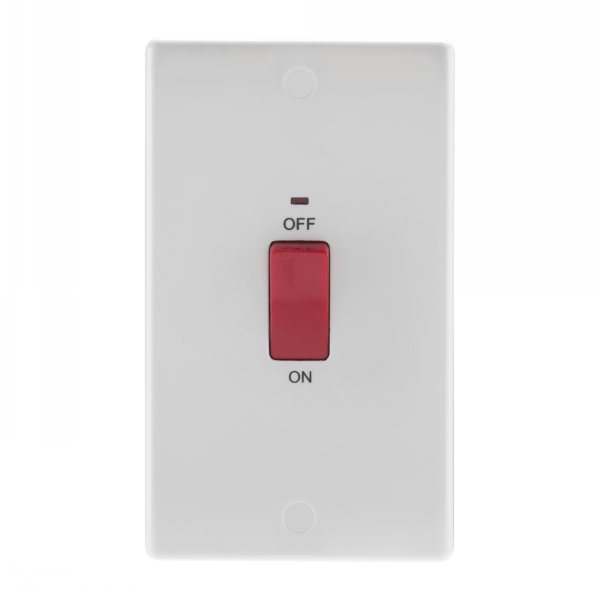

BG Rounded Edge Double Pole Cooker Switch & Indicator LP
$59.03
$75.56
Description BG Rounded Edge Double Pole Cooker Switch – Large Plate With Indicator The subtle design will blend with any décor – suitable for domestic or commercial installations. White moulded round edge, sleek and slim with softly rounded edges. Covers to conceal fixing screws. Angled colour coded terminals with captive screws. 2 earth terminals. Supplied with spacer adaptor plate. Easy to install, supplied with fixing screws and installation instructions. Technical Specifications: • Standard: BS4177 • Rating: 45 Amp 250V~ • Switch Type: Double Pole • Contact Gap: 3.0mm minimum • Terminal Capacity L & N: 4 x 4.0mm² 3 x 6.0mm² 1 x 16.0mm² • Mounting Box Depth (Min): 47mm • Fixing Centres: 120.6mm vertical • Size: 146.5mm x 86mm x 29.3mm
