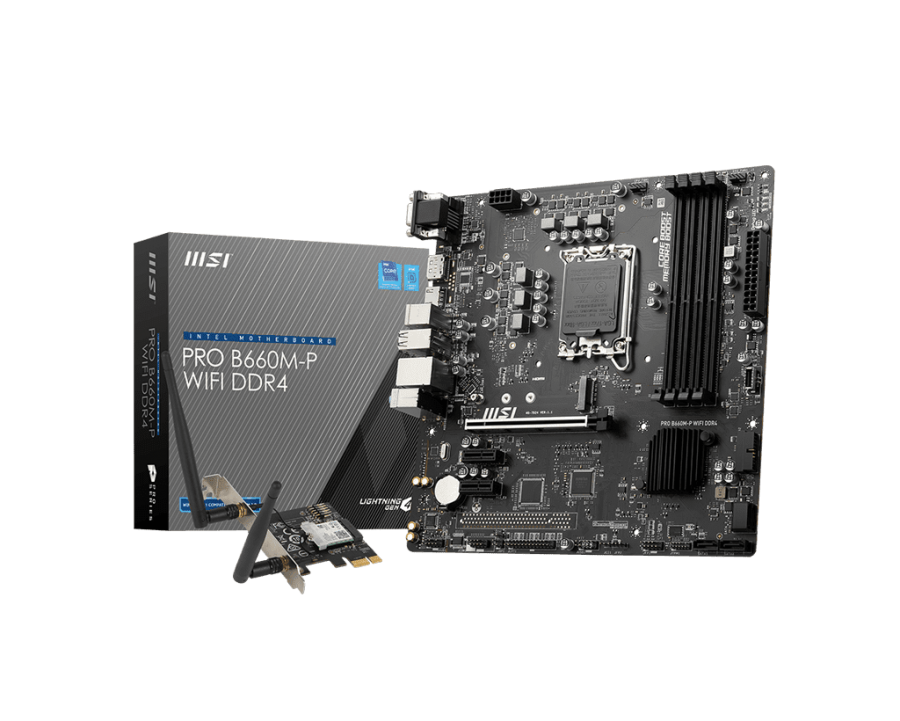

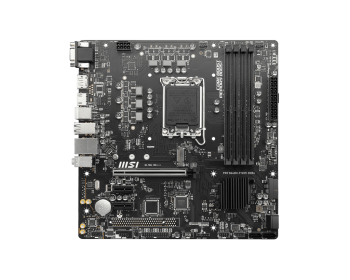

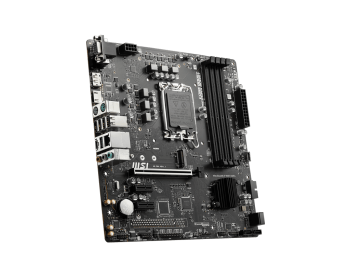

MSI PRO B660M-P WIFI DDR4 LGA 1700 Intel B660 SATA 6Gb/s Micro ATX Intel Motherboard

PRODUCT SPECIFICATIONS   CPU Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1700   CHIPSET Intel® B660 chipset MEMORY 4x DDR4 memory slots, supporting up to 128GB Supports 1R 2133/2666/3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4600 MHz 1DPC 2R Max speed up to 4000 MHz 2DPC 1R Max speed up to 4000 MHz 2DPC 2R Max speed up to 3600 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel®Extreme Memory Profile (XMP) Please refer www.msi.com for more information on compatible memory.   EXPANSION SLOT 1x PCIe x16 slot PCI_E1 (From CPU) Supports up to PCIe 4.0 x16 2x PCIe x1 slots PCI_E2 & PCI_E3 (Fom B660 chipset) Supports up to PCIe 3.0 ONBOARD GRAPHICS 1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz 1x VGA port, supporting a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed. AUDIO Realtek® ALC897 Codec 1-Channel High Definition Audio LAN 1x Realtek® RTL8111H 1Gbps LAN controller STORAGE 4x SATA 6Gb/s ports (From B660 chipset) 1x M.2 slot (Key M) M2_1 slot (From B660 Chipset) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices FORM FACTOR M-ATX Form Factor 6 in. x 9.6 in. (24.4 cm x 24.4 cm) WI-FI & BLUETOOTH Intel® Dual Band Wireless-AC 3168 Dual Band 1×1 802.11ac 4GHz/ 5GHz bands 433 Mbps Max Speed Bluetooth 4.2 (BR/EDR, BLE) Supports Windows 7/ 8.1/ 10 BIOS FEATURES 1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4 Multi-language POWER CONNECTORS 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector INTERNAL USB CONNECTORS 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 1x USB 2.0 Type-A connector (From B660 chipset) Supports additional 2 USB 2.0 ports FAN CONNECTORS 1x 4-pin CPU fan connector 1x 4-pin system fan connector SYSTEM CONNECTORS 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x parallel port connector 1x Serial port POWER CONNECTORS 1x Clear CMOS jumper LED FEATURE 4x EZ Debug LED BACK PANEL CONNECTORS VGA DisplayPort HDMI Keyboard / Mouse USB 2.0 LAN port Audio connectors USB 3.2 Gen 2 10Gbps Type-C USB 3.2 Gen 1 5Gbps Type-A
