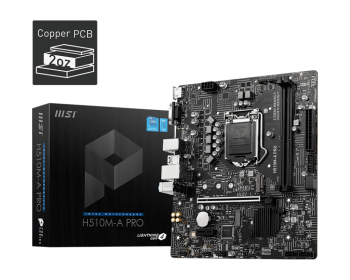

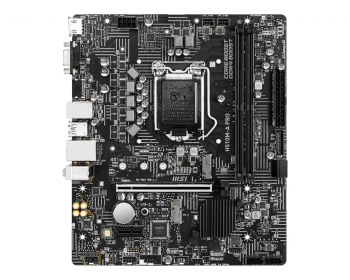

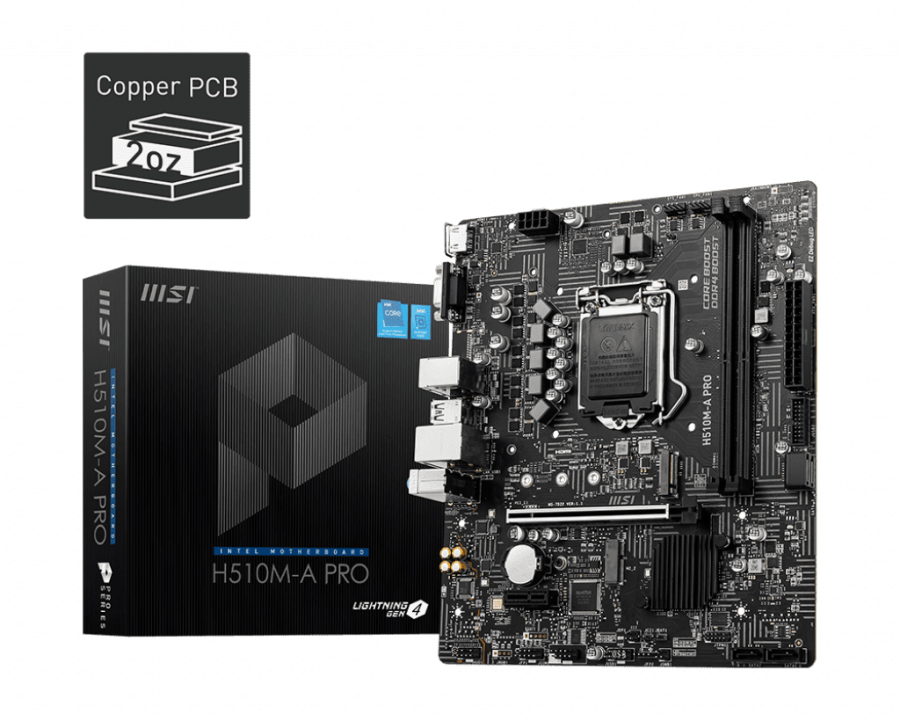

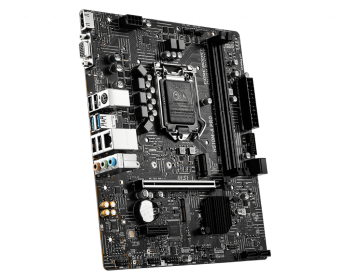

MSI H510M-A PRO LGA 1200 Intel H510 SATA 6Gb/s Micro ATX Intel Motherboard (Only With Ci5 11400F)

PROCESSOR Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1   CHIPSET Intel® H510 Chipset MEMORY 2x DDR4 memory slots, support up to 64GB1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) EXPANSION SLOT 1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU 1x PCIe 3.0 x1 slot (From PCH) 1x M.2 slot with E key for WiFi (PCIe) module only(M2_2) ONBOARD GRAPHICS 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1 2 1x VGA port, supports a maximum resolution of 2048×1536 60Hz, 1920×1200 60Hz1  Available only on processors featuring integrated graphics.  Graphics specifications may vary depending on the CPU installed. STORAGE 4x SATA 6Gb/s ports (From H510 Chipset) 1x M.2 slot (Key M) M2_1 slot (From H510 Chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s1 Supports 2242/ 2260/ 2280 storage devices  SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. USB Intel® H510 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub- GL850G), 2 ports available through the internal USB 2.0 connector) AUDIO Realtek® ALC892/ ALC897 Codec 7.1-Channel High Definition Audio LAN 1x Intel® I219V 1Gbps LAN controller INTERNAL CONNECTORS 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector BACK PANEL PORTS HDMI VGA Mouse / Keyboard LAN port Audio connector USB 2.0 USB 3.2 Gen 1 5Gbps Type-A USB 2.0 DIMENSIONS mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm) MOUNTING 6 mounting holes OPERATING SYSTEM Support for Windows® 10 64-bit
