$42.24
$83.64

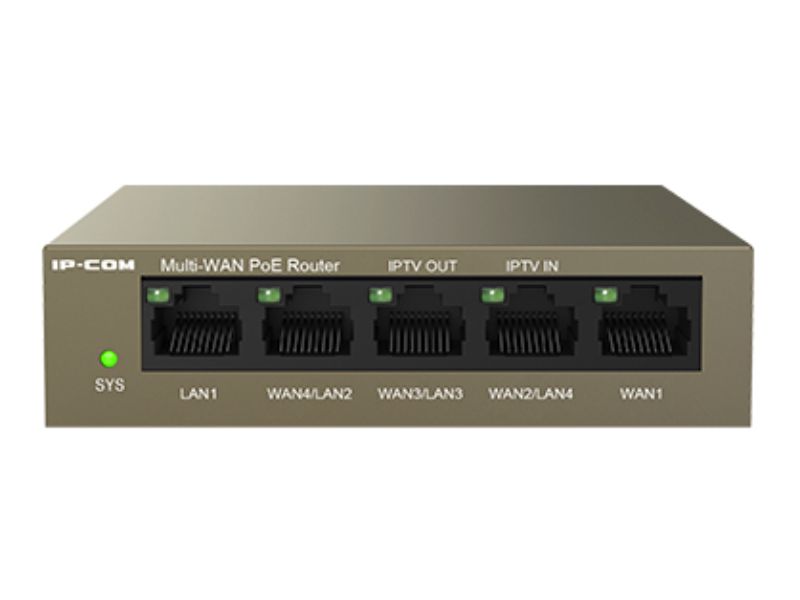

M20-PoE v3.0 5 Port Cloud Managed PoE Router Integrates router, PoE switch, and controller altogether Dual-Core CPU provides 1Gbps Forwarding performance Up to 4`d7 WAN Ethernet Ports`a3`acSupport load balancing 4`d7 802.3at/af-compliant PoE ports yield a total power supply of 55W Product Informations Basic Information M20-PoE Installation Desktop Dimensions (L*W*H) 100*100*26mm Application Scenario Enterprise Office Operation mode Router Mode Performance Parameters Max. Client Capacity 150 Recommended Client Capacity 100 Recommended broadband 1000Mbps Max. New Sessions 4000 Max. Concurrent Sessions 42000 NAT (Static IP) 940Mbps/930Mbps NAT(DHCP) 941Mbps/932Mbps NAT(PPPoE) 914Mbps/924Mbps AP Management Router mode: 128 AC mode: 256 VLAN 4 Hardware Parameters CPU Dual Core`a3`ac1.0GHz RAM 128 MB FLASH 16 MB Ports 5*GE (Max. 4 WAN, Max. 4 LAN) PoE outport 802.3af/at on LAN1-4 PoE Budget 55W Button Reset Button USB / Standards and Protocols IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, DDNS Power Supply 51VDC/1.25A Adapter Software Parameters(Router) AP Management 128APs DHCP Server DHCP Server(User/AP),DHCP Reservation Wireless Policy AP Group,SSID Policy,RF Policy,Vlan Policy,maintenance policy,Alarm Policy,Deployment Policy Fast roaming 802.11k,v,r IPTV IPTV Policy ACL IP/MAC/URL/PORT Bandwidth Control Based on single user, user group, smart bandwidth control VPN IPSec, PPTP, L2TP Virtual Server DMZ, DDNS, DNS Hijacking,IP Hijacking,UPNP,Port Mirroring,Port Mapping,DNS Cache IPV6 Support WAN Load Balancing Intelligent Load Balancing,Customize Routing Static Routing,Policy Routing Security IP-MAC binding, Block Ping from WAN,DDoS Attack Defense,ARP Attack Defense,Binary Association System Tools ntp,Scheduled reboot, Diagnosis system log system log,Operating log,Running log System Account Administrator,Visitor,Login IP Address Limit Upgrade Local,Online Maintenance Restore,Backup,Remote WEB Management Management http/https,ProFi Cloud,ProFi APP Other Parameters Environment Operating Temperature: -10℃-45`b0C Operating Humidity:10%-90% RH, non-condensing Storage Temperature: -40`b0C-70`b0C Storage Humidity: 5%-90% RH, non-condensing
